Precision Pneumatic Grippers

Precision Grippers

Precision Gripper Features Open, close and jaw position sensing available
Tested and precylced
Operating pressure 60-100 psi

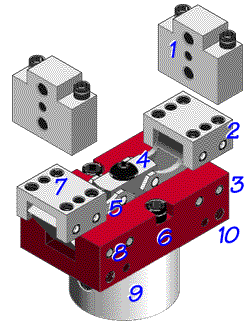

  1. Optional jaws predrilled for tooling mount
  2. Four bar linkage design--no sliding parts
  3. Self-lubricating pivot bushings
  4. Hardened steel clevis link
  5. Ground steel linkages
  6. Anodized aluminum body
  7. Dowel pins & tapped holes for tooling
  8. Hardened pins for increased cycle life
  9. Compact double acting cylinder
  10. Convenient mounting holes

See Gripper Specifications and Drawings

Custom tooling and special grippers also available. Contact us with your application.

Barrington Automation pneumatic grippers are engineered and manufactured for reliability and precision in production environments. Double acting cylinders and a wide range of motions, sizes and available custom tooling provide capabilities for most pick and place applications. Custom gripper design is available for special applications. Contact us for more information.

Adjustable block available for opening

Available from stock
